Gypsum Edge Profiler System

Measure the Edge, Manage the Process, Improve Efficiency

Edge Profiler System

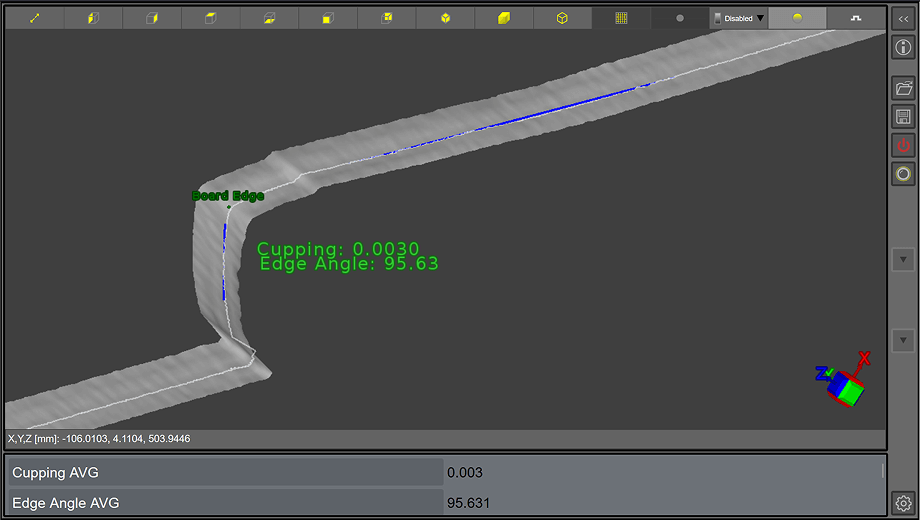

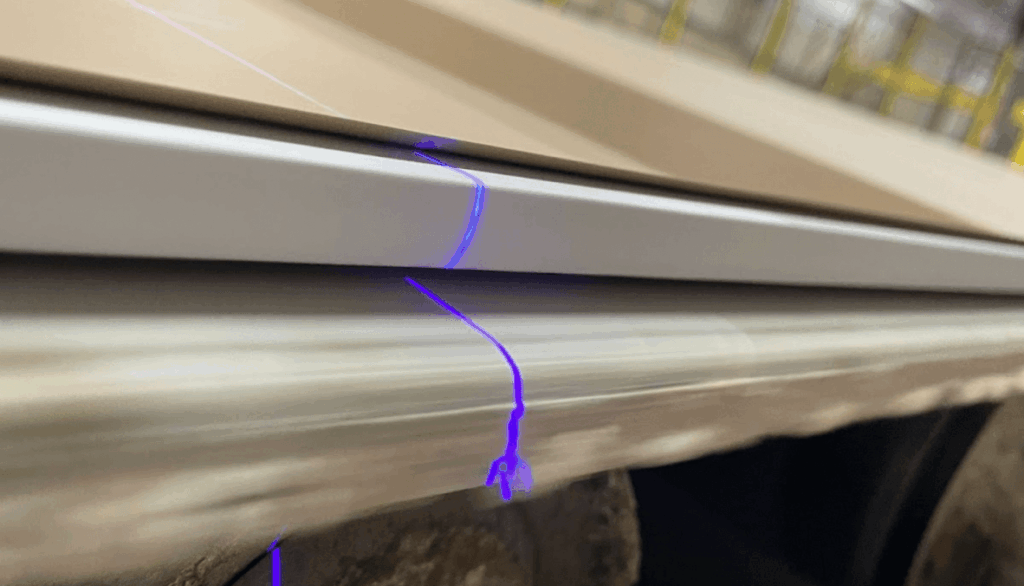

Step into the future of gypsum board manufacturing efficiency with our Edge Profiler System. This innovative system utilizes 3D profilometers to precisely measure gypsum board width during the forming process with an accuracy of +/- 1/32 of an inch. It also evaluates the edge angle to ensure correct formation and detects dip/cupping along the board edge—critical indicators often overlooked by competitors.

Request Your Audit Now

Product Capabilities

The Edge Profiler System excels in real-time dimensional checks, preventing scrap and optimizing production quality. It integrates advanced 3D profiling technology to provide immediate feedback during the forming process, enhancing product consistency and reducing waste.

Accurate Measurement: Ensures gypsum board width and edge angle compliance with specifications.
Real-time Defect Detection: Identifies dip/cupping defects to indicate edge collapse and board/edge forming issues.
Enhanced Quality Control: Minimizes scrap and improves product reliability through continuous monitoring.
Operational Efficiency: Integrates seamlessly into existing manufacturing lines for enhanced productivity.
Inline Calibration Check: Check accuracy anytime with the built-in calibration plate — no need to stop the line.

Boost Your Efficiency

Experience increased productivity and reduced scrap rates with our Edge Profiler System.

Automate critical quality checks and maintain consistent product standards from the production floor to your customers.

Advanced Machine Vision

At the core of our Edge Profiler System is advanced Cognex 3D vision technology, programmed in-house for maximum flexibility and precision. We don’t just integrate cameras — we build intelligent, multi-profiler solutions that combine real-time calibration, custom measurement logic, and fully integrated Allen-Bradley HMI/PLC control. From high-speed data handling to complex edge calculations, our vision programming delivers performance, reliability, and automation that set us apart.

Quality Assurance

At 20/20 Robotics, we specialize in delivering robust robotic and machine vision solutions. From consultation to integration, trust us to elevate your manufacturing capabilities with cutting-edge automation.

Request Your Audit Today

FAQs

Why is edge profiling so important in gypsum board production?

The edge defines how boards perform and fit together in the field. Inconsistent width, collapsed edges, or dips/cupping may slip through without detection, causing installation issues, failed inspections, and higher scrap rates. Our Edge Profiler ensures every board is measured and verified in real time, so problems are caught before they leave the forming line.

How does the Edge Profiler prevent scrap and wasted production costs?

Without automated edge inspection, defects are often only found after stacks are wrapped or shipped — when it’s too late to correct. The Edge Profiler continuously monitors width, edge angle, and defects at line speed, providing operators instant feedback to fix issues before entire runs are compromised. That means less waste, less rework, and more profit per line hour.

What makes this Edge Profiler more reliable than other systems on the market?

Many inspection systems require frequent calibration and outside service, creating delays and unpredictable performance. Our Edge Profiler is different — it includes a built-in calibration system that lets you verify accuracy yourself, right on the line. This makes results more consistent, and if additional support is needed, our team can quickly interpret calibration data to provide faster, more effective solutions.
